文件大小: 7.0 MB
当从 Autodesk® Revit® 导出图纸至 DWG 格式时，每张图纸通常会被保存为单独文件。若要将这些图纸合并为包含所有视图与图纸布局的单一 DWG 文件，需在 CAD 中执行耗时的图面合并或布局导入操作。
本插件通过提供两种高效导出指令优化此工作流程
“多布局导出” 指令
将所有图纸导出并合并至单个 DWG 文件，每张图纸将置于独立的布局选项卡中。
“单布局导出” 指令
将多张图纸导出至单个 DWG 文件。所有图形内容将存放于模型选项卡，而全部图框信息将合并到单个布局选项卡中。
兼容版本
Autodesk Revit
版本: 2026 , 2025 , 2024 , 2023 , 2022 , 2021
File size: 7.0 MB
When sheets are exported from Autodesk® Revit® to DWG, each sheet is typically saved as a separate file. Combining these files into a single DWG with all drawings and sheets requires a time-consuming manual process of merging or importing layouts in CAD.
This plugin simplifies the workflow by providing two powerful export commands

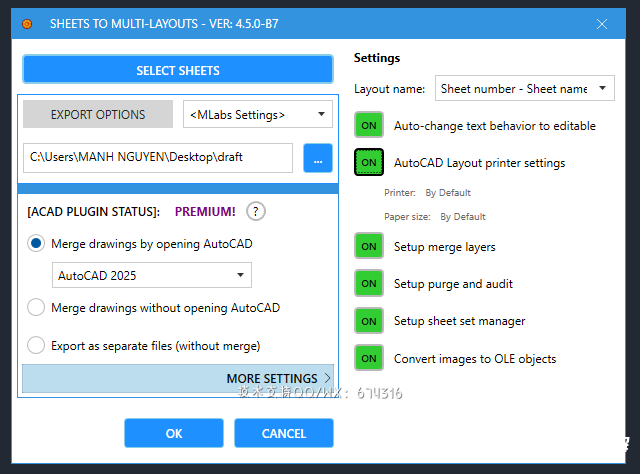

“To Multiple Layouts” Command
Export and merge all sheets into a single DWG file, where each sheet is placed in its layout tab.
“To 1 Layout” Command
Export multiple sheets into a single DWG file. All drawings are placed in the model tab, while all sheets are combined into a single layout tab.
Compatible with
Autodesk Revit
Version: 2026 , 2025 , 2024 , 2023 , 2022 , 2021
