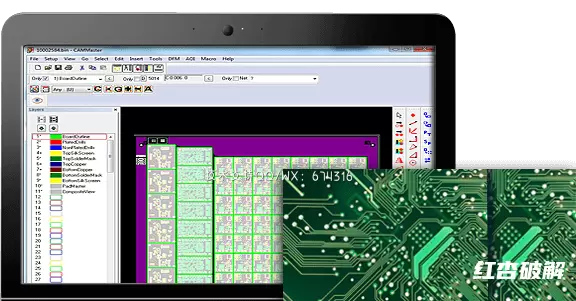

CAMMaster Designer 是设计师应对严苛任务的首选 CAM 软件。体验业内顶尖的 CAD 配套工具，助您高效完成工作。集成全套功能模块，拼板流程化繁为简。网表提取与 DRC 功能树立行业标杆。
文件大小：61.1 MB
CAMMaster Designer 是设计师应对严苛任务的首选 CAM 软件。体验业内顶尖的 CAD 配套工具，助您高效完成工作。集成全套功能模块，拼板流程化繁为简。网表提取与 DRC 功能树立行业标杆。
核心功能
高级DFM检查
网表提取（轮廓与光栅）
网表比对
多边形融合
自动图形转焊盘
交叉点筛选
阻焊层生成
焊盘数据自动导出钻孔文件<br”
排气与偷锡工艺
技术亮点
基于轮廓的网表提取
高阶DFM验证<br”
自动化孔径转换
叠层比对<br”
网络转换工具<br”
智能图形转焊盘技术<br”
阻焊层优化生成<br”
铜箔灌铜处理<br”
丝印层智能截断<br”
排气偷锡方案<br”
享一年免费技术支持<br”
电路网表比对系统<br”
更多进阶功能！
File size: 61.1 MB
CAMMaster Designer is the Designer’s choice CAM software for the most demanding jobs. Experience the best CAD companion tool in the industry to get your jobs done. Panelization is a snap with all the features available in this package. Netlist extraction and DRC set the industry standard.
资源特色
Advanced DFM Checks
Netlist Extraction (Contour and Raster)
Netlist Compare
Polygon Merging
Automated Draw To Flash
Select By Intersection
SolderMask Generation
Auto Create Drill File From Pad Master
Venting and Thieving
Highlights
Contour based netlist extraction
Advanced DFM checks
Automated aperture conversion
Layer comparison
NetConvert
Automated draw-to-flash conversion
Soldermask generation
Copper pouring
Silkscreen clipping
Venting & thieving
One year of free technical support
Netlist comparison
And, much more!
