一款功能强大的 Autodesk® Civil 3D® 插件，旨在节省检查管道交叉的时间和精力。
文件大小：13.5 MB

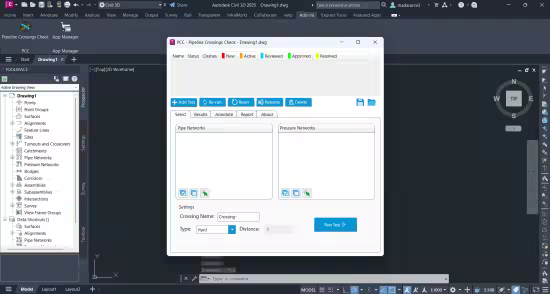

PCC – 管道交叉检查器是为 Autodesk® Civil 3D® 开发的强力插件，可大幅节省管道交叉核查时间。该插件能在建模过程中检测软碰撞和硬碰撞，提供用户友好界面简化重力管网与压力管网的选取操作，并智能核查管网交汇处的冲撞情况。检测结果将以表格形式呈现，并支持在模型中标注冲突点。
功能优势
▶ Civil 3D 建模时同步检测软/硬碰撞
▶ 支持双管网对比：重力网-重力网/压力网-压力网/重力网-压力网
▶ 实现单管网自检（重力/压力管网皆可）
▶ 提供可定制化标注配置的碰撞标记功能
▶ 快速定位冲突区域的一键缩放功能
▶ 支持查看碰撞关联部件明细
兼容性
Autodesk® Civil 3D®
版本支持：2026、2025、2024、2023、2022、2021、2020
一款功能强大的 Autodesk® Civil 3D® 插件，旨在节省检查管道交叉的时间和精力。
File size: 13.5 MB
PCC – Pipeline Crossings Check is a powerful plugin for Autodesk® Civil 3D® designed to save time and effort in checking pipeline crossings. It can detect both soft and hard clashes during modeling. The plugin offers a user-friendly interface, simplifying the selection of Gravity Network or Pressure Network, and checks for clashes where they intersect. The results are displayed in a table, and clashes can be labeled in the model.
资源特色 and Benefits
Detects soft and hard clashes while modeling in Civil 3D.
Allows you to compare two pipe networks, including gravity network with gravity network, pressure network with pressure network, or gravity network with pressure network. Additionally, it facilitates checks within the same pipe network, whether gravity or pressure
Labels clashes in the model, with customizable labeling settings.
Zooms to the locations of clashes for quick identification.
Allows selection of the involved parts of clashes.
Compatible with
Autodesk® Civil 3D®
Version: 2026 , 2025 , 2024 , 2023 , 2022 , 2021 , 2020资源特色 and Benefits
Detects soft and hard clashes while modeling in Civil 3D.
Allows you to compare two pipe networks, including gravity network with gravity network, pressure network with pressure network, or gravity network with pressure network. Additionally, it facilitates checks within the same pipe network, whether gravity or pressure
Labels clashes in the model, with customizable labeling settings.
Zooms to the locations of clashes for quick identification.
Allows selection of the involved parts of clashes.
Compatible with
Autodesk® Civil 3D®
Version: 2026 , 2025 , 2024 , 2023 , 2022 , 2021 , 2020
